EMG JeffTron Leviathan Airsoft Drop-In Programmable MOSFET Module (Type: V2 Optical / Wired to Stock)
Features
- Easy installation inside the gearbox version 2, compatible with Tokyo Marui standard

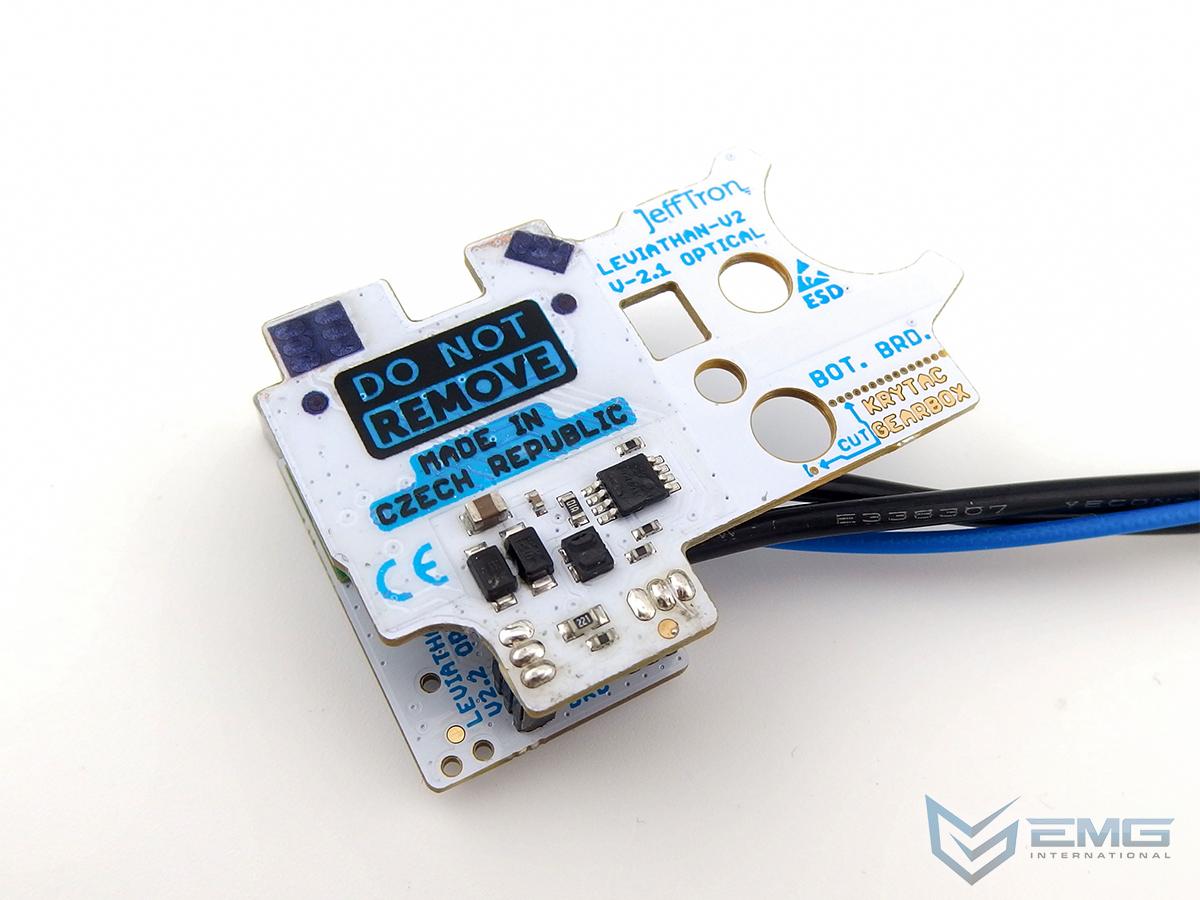

- You don‘t have to modify the gearbox V2 from the Krytac company. Simply cut the Leviathan bottom board
- It uses optical sensor actuated by sector gear cam for perfect semi and burst fire timing
- For fire selector position is used optical sensor too - it works with sticker provided with Leviathan
- Tactile trigger switch makes short click for great hair trigger mod
- Unique real feel trigger system (RFTS) simulates trigger feeling like in the real gun. It adds secondary resistance with release after the fire. Feeling is comparable to shooting with real caliber 22lr in AR15

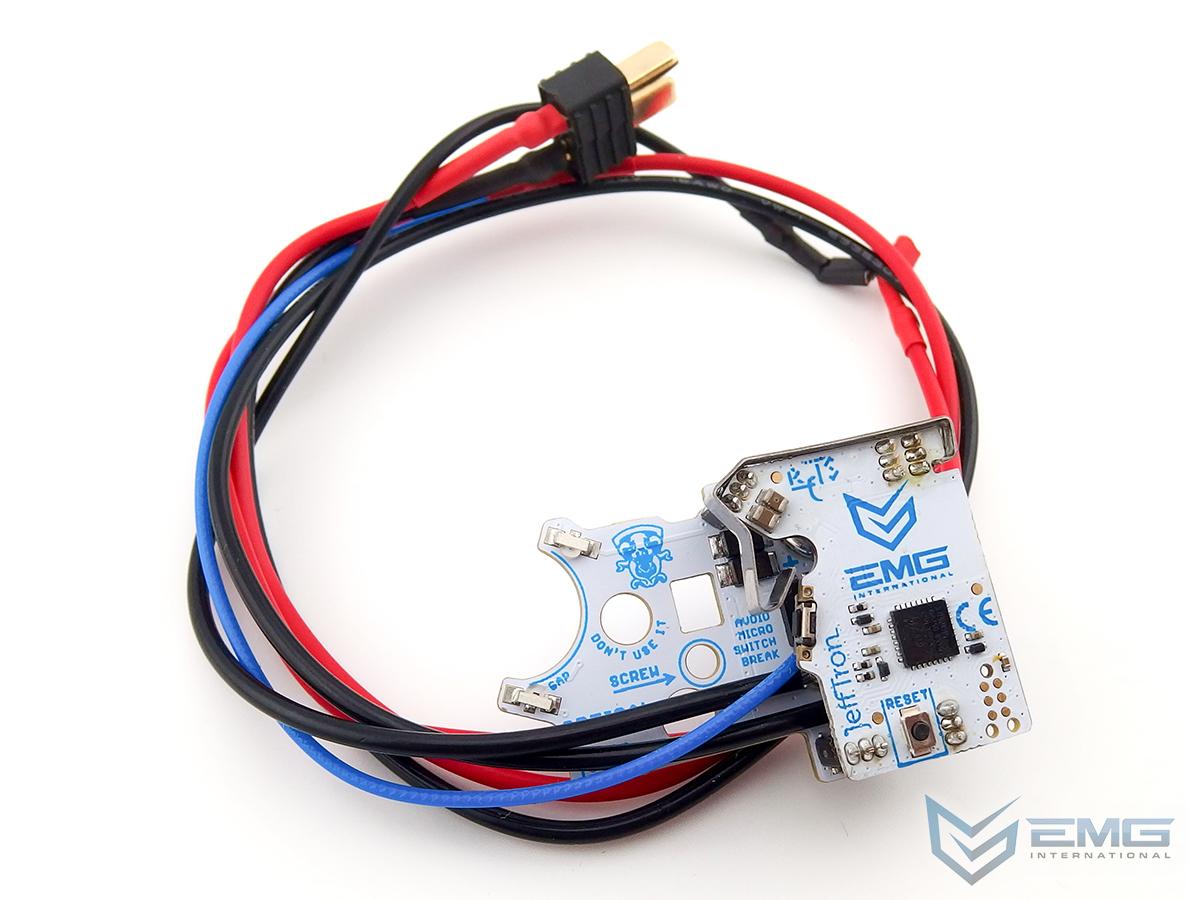

- Completely made wiring allows the fastest and the easiest installation into the gun, it is long enough for all kind of weapons with battery placed in the stock. No soldering is needed
- On the board is input port for controlling output port, 3rd burst, external trigger, magazine reload, etc. and output port for the hop-up chamber BBs illumination, powering electric magazine, flashlight, laser, etc.
It combines optical and switch sensors for better handling and durability.
Build-in wireless communication for quick setup using iOS or Android smartphones!.
Tactile trigger switch has travel only 0,13mm long for ultimate hair trigger feeling.
Unique Real feel trigger system (RFTS) with integrated spring simulates trigger resistance like in the real gun. It adds secondary resistance with release after the fire. RFTS was designed by professional gunsmith for more realistic feel from shooting.
External output and input port serves for custom accessories.
Real time response for change settings -> immediately test result.

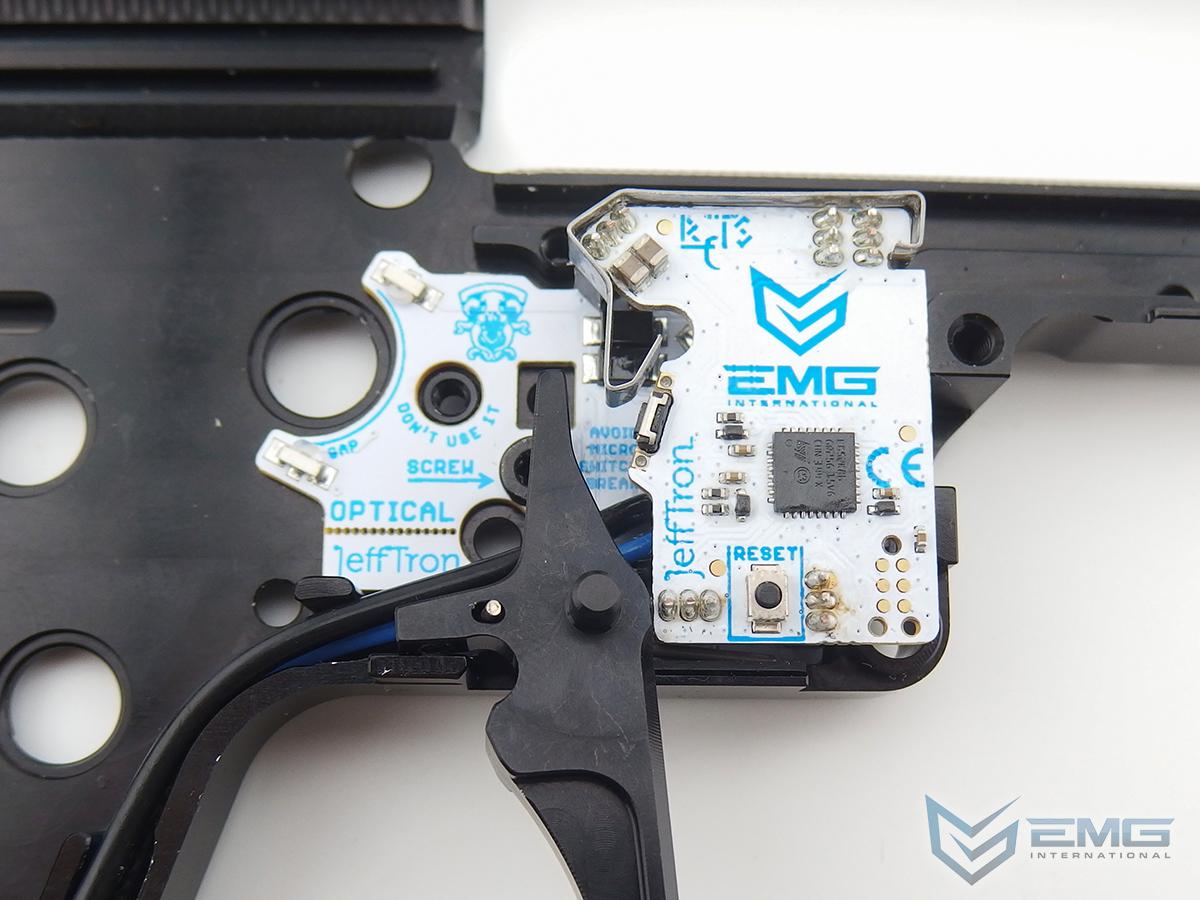

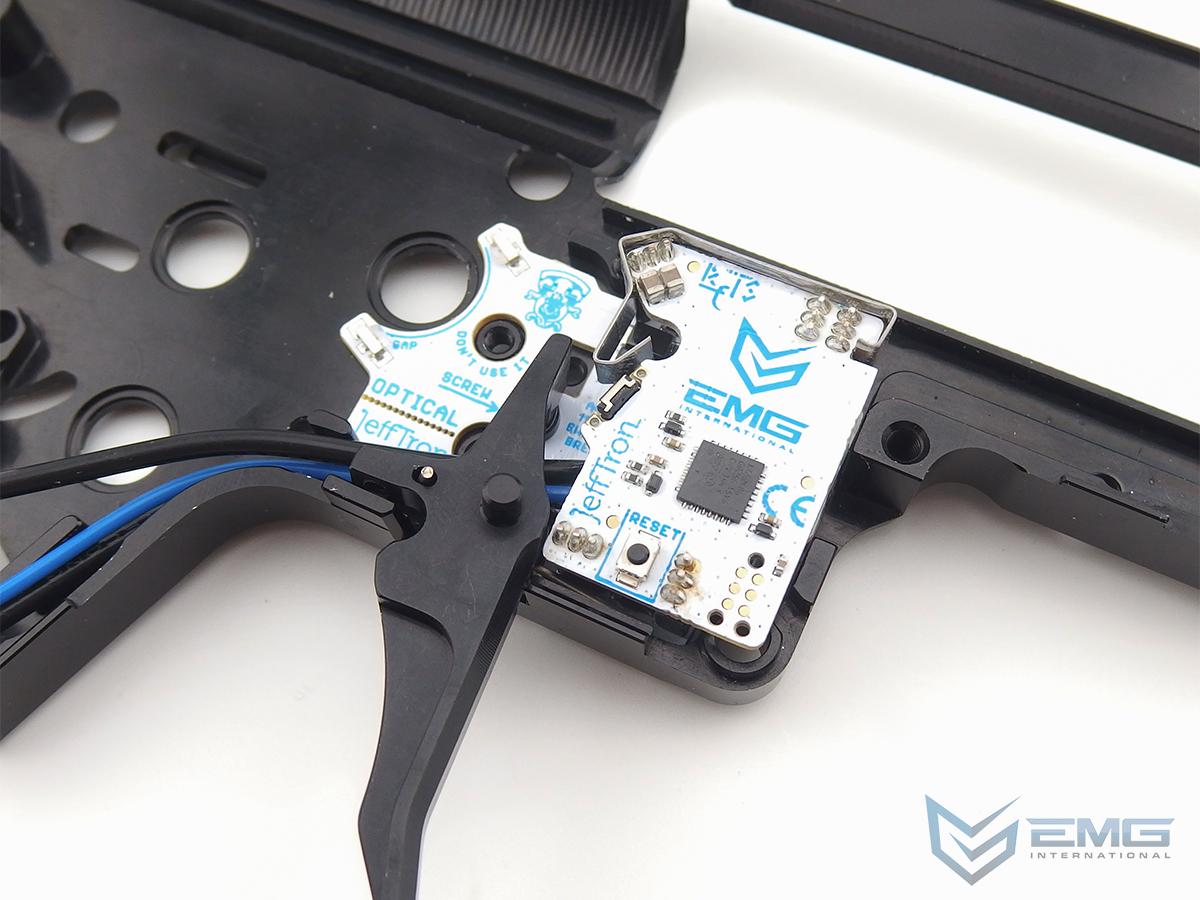

Easy installation into the gearbox (fully integrated inside the gearbox instead of the original trigger contacts).
New functions are for free for every user via online update.
Main Functions:
- Adds new shooting modes independent for every position on the fire selector (SAFE - SEMI - AUTO)
- Three adjustable bursts (range 2 - 20 shots)
- It preserves empty magazine detection like the original gun
- Rate of fire can be reduce to 40%. It add breaks between shots to reduce RoF. It gives fast trigger response even with very low rate of fire, just like in a real gun.
- Adjustable strength active braking (can be disabled)
- Pre-cocking function for instant shot on SEMI fire
- Delay between shots adds time in which isn't possible to shoot, it simulates the delay from gun reload or recoil (range 0,1 - 4,0 seconds)
- Electronic fuse set sensitivity for high current detection to avoid any damage if something goes wrong
- Low battery indication for 2S - 4S li-pol and 3S - 4S li-fe
- Virtual magazine simulates low capacity magazines, it will force the gun to stop shooting when it reach 0. There can be set warning after shot before empty magazine and how it will be reloaded
- On the board are input and output ports for controlling external devices or Leviathan
- Statistics screen shows shooting output with cycle timing, motor current consumption, rate of fire and temperatures. It allows you to do fine-tune gearbox upgrade
- Application shows actual battery voltage value. Color lines indicates battery charge status where green is OK, orange will warn after each shot and red will not allow to shoot
- User can save multiple settings under profiles
- Update function fixes bugs and adds new features to the device
- There are three shot counters. Total count every shot during the device lifetime. User counter can be reset by user anytime. Power-up counter is reset by battery connection
- Error log shows errors made during the device life also can be erased by user
- For better security wireless connection can be disable by the selector switch (can be deactivated)
- Leviathan monitors current, voltage and temperature to avoid any damage when something go wrong
- Motor vibrates and beeps as a feedback for user
- Programmed settings are saved in the Leviathan memory immediately after their change, so you can immediately test it and settings aren't lost when is battery disconnected or lost connection with smartphone
- New functions are for free for every user via online update function
FIRE MODES:
Independent for every position on the fire selector (SAFE - SEMI - AUTO)- SAFE: no responding on the trigger pull.
- Semi: it fires single shot per trigger pull.
- Semi/BurstX: short trigger pull fires single shot, long trigger pull fires burst.
- Binary trigger: it fires single shot when trigger is pulled and another single shot when is released.
- BurstX: gun shoot burst per trigger pull.
- BurstX+BurstY: short trigger press fires burstX, long trigger press makes burstX+burstY fire.
- BurstX/Full: short trigger press fires burstX, long trigger press makes auto fire.
- Full: gun makes auto fire until releasing trigger.
- Virtual Reload: pull trigger to reload virtual magazine

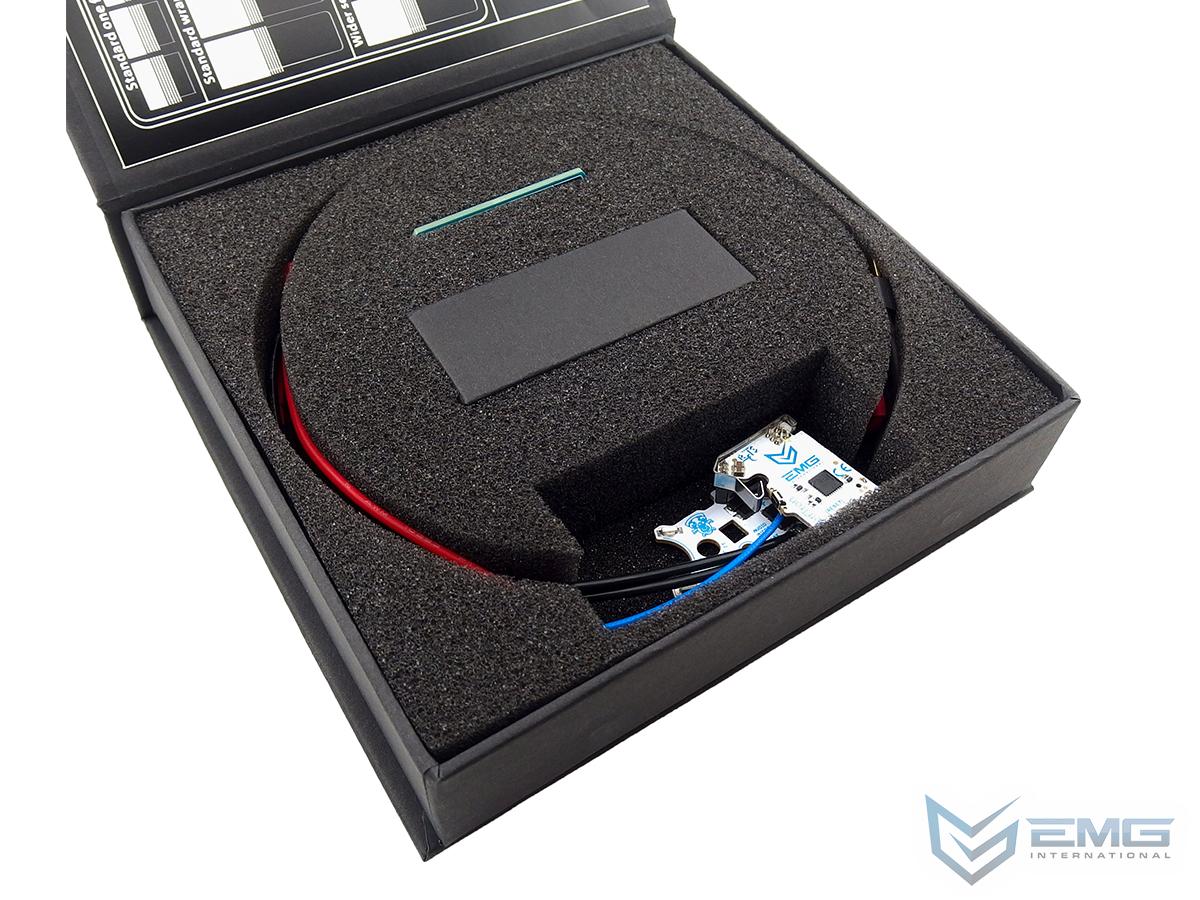

Package Includes: Leviathan - V2 optical drop-in electronic module with wiring to stock, T-plug connector, 40A mini fuse and faston connectors to the motor, CNC trigger with zero path adjustment screw (different variants), Screw with washer for securing device in the gearbox, Black Leviathan sticker 40mm
