Strike Industries ASM Ring Cap Multi-Optic Mount System

Features

• Machined from 6061-T6 aluminum
• Only for use with 30mm tube Strike Adjustable Scope Mount (ASM)
• Optic plate or Picatinny rail can be mounted at 2, 10 or 12 o’clock positions
• Lightweight and high-strength

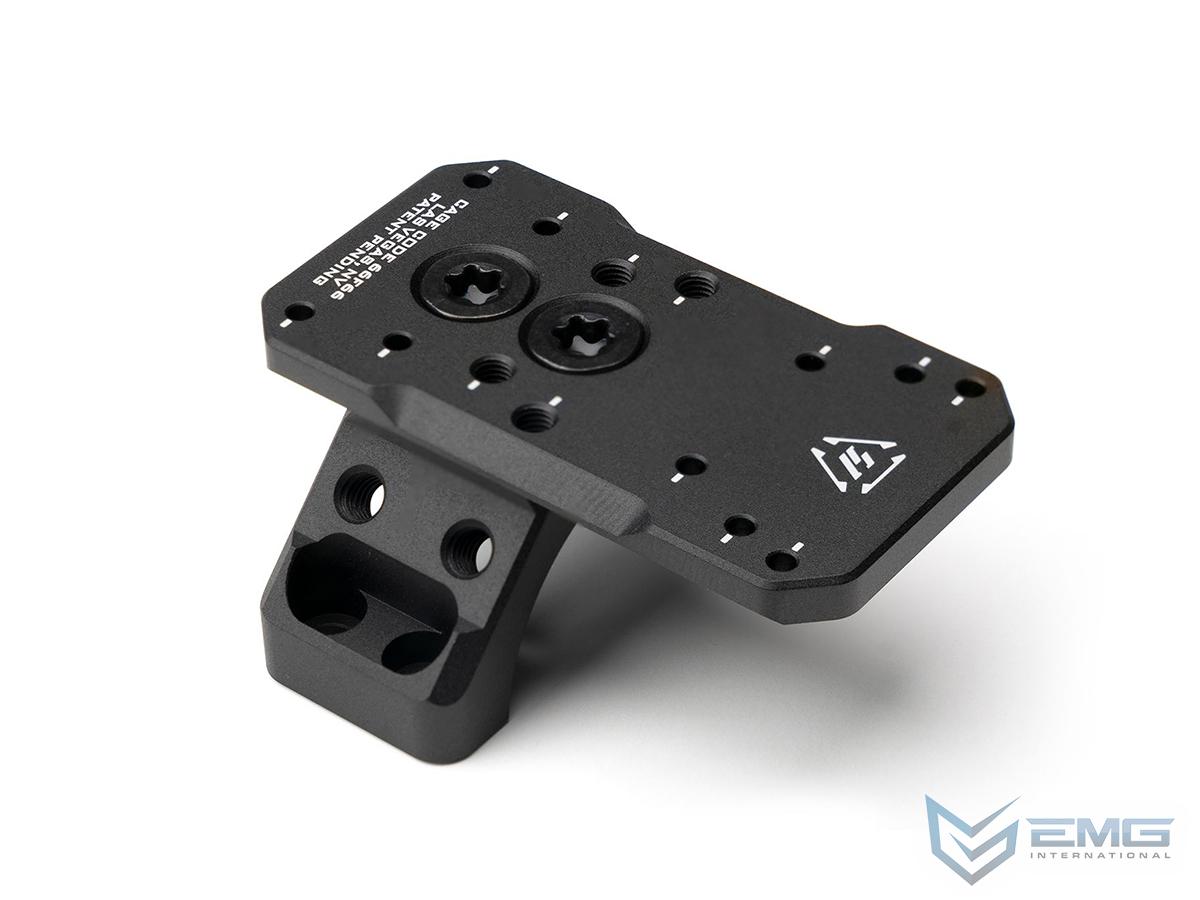

• Included optic plate is compatible with all major micro red dot sights on the market

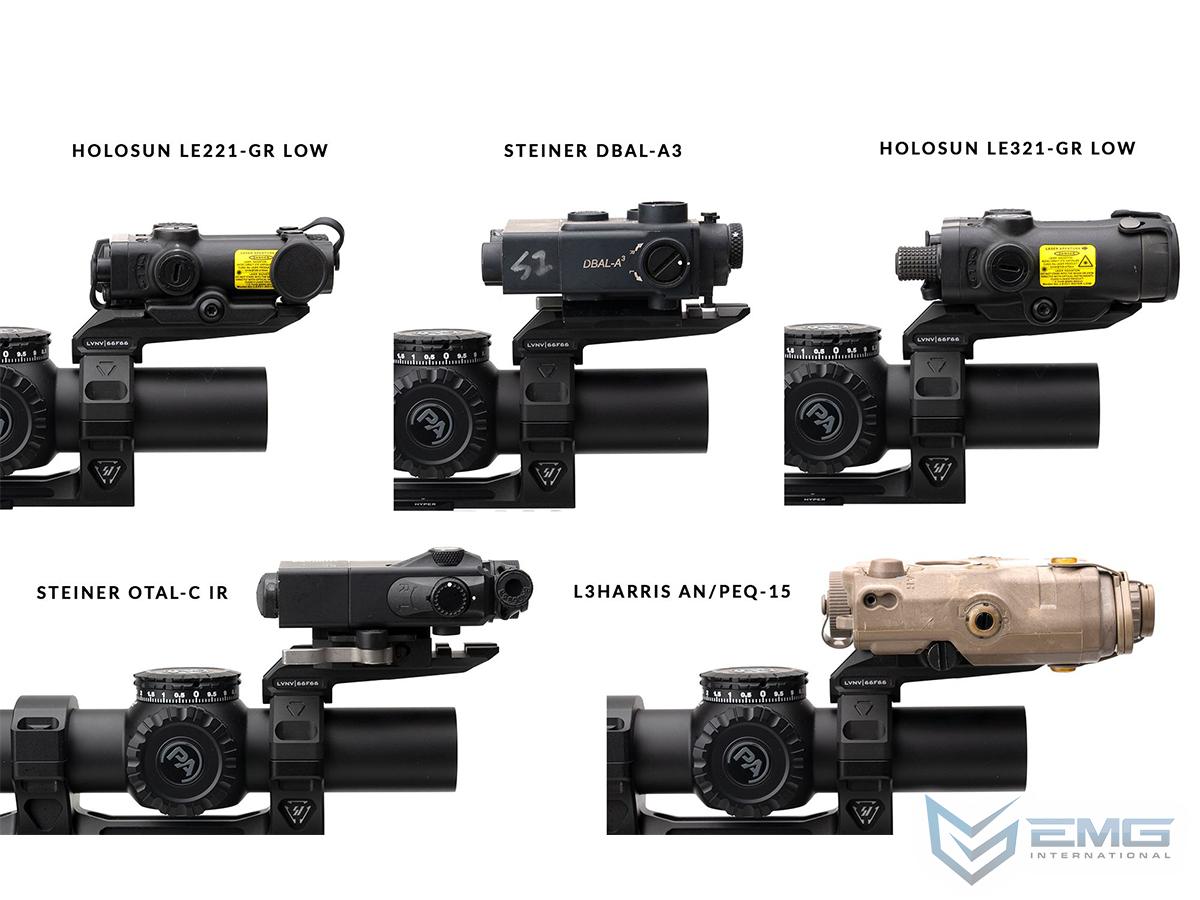

• Included Picatinny rail for mounting IR devices, ranging equipment or any Picatinny based accessory

The Strike ASM Ring Cap Multi-Optic Mount System is a drop-in add-on for the SI Adjustable Scope Mount (ASM) that gives you almost endless mounting possibilities for just about all Mini/Micro Red Dot Sight (MRDS) footprints on the market or Picatinny rail for mounting IR devices, ranging equipment or any Picatinny-based accessories. When you want to enhance your Strike Industries ASM by running a dual optic setup and have a close distance MRDS paired with a Low Power Variable Optic (LPVO) scope, this Strike ASM Ring Cap Mount is an accessory that does not force you to pick only one red dot you have to stick with forever. The included multi-optic plate or Picatinny rail can be mounted at 12 o'clock or 45-degree right or left positions to customize exactly for the specific user. With fitment for almost all MRDS’ on the market, the Strike ASM Ring Cap Multi-Optic Mount System gives you a simple and modular just about all-in-one solution to upgrade the functionality of the Strike Industries Adjustable Scope Mount (ASM).
Scope Cap Mount Compatibility: Only Compatible w/ the Strike Industries Adjustable Scope Mount (ASM)
Red Dot Compatibility:

• C-More, Deltapoint Pro, Docter/Noblex, & RMR Standard
• Shield Standard: Shield Footprint using only housing rear posts
• NOT COMPATIBLE w/ SIG Sauer ROMEO1 or ROMEO1PRO

Material: Machined from 6061-T6 Aluminum

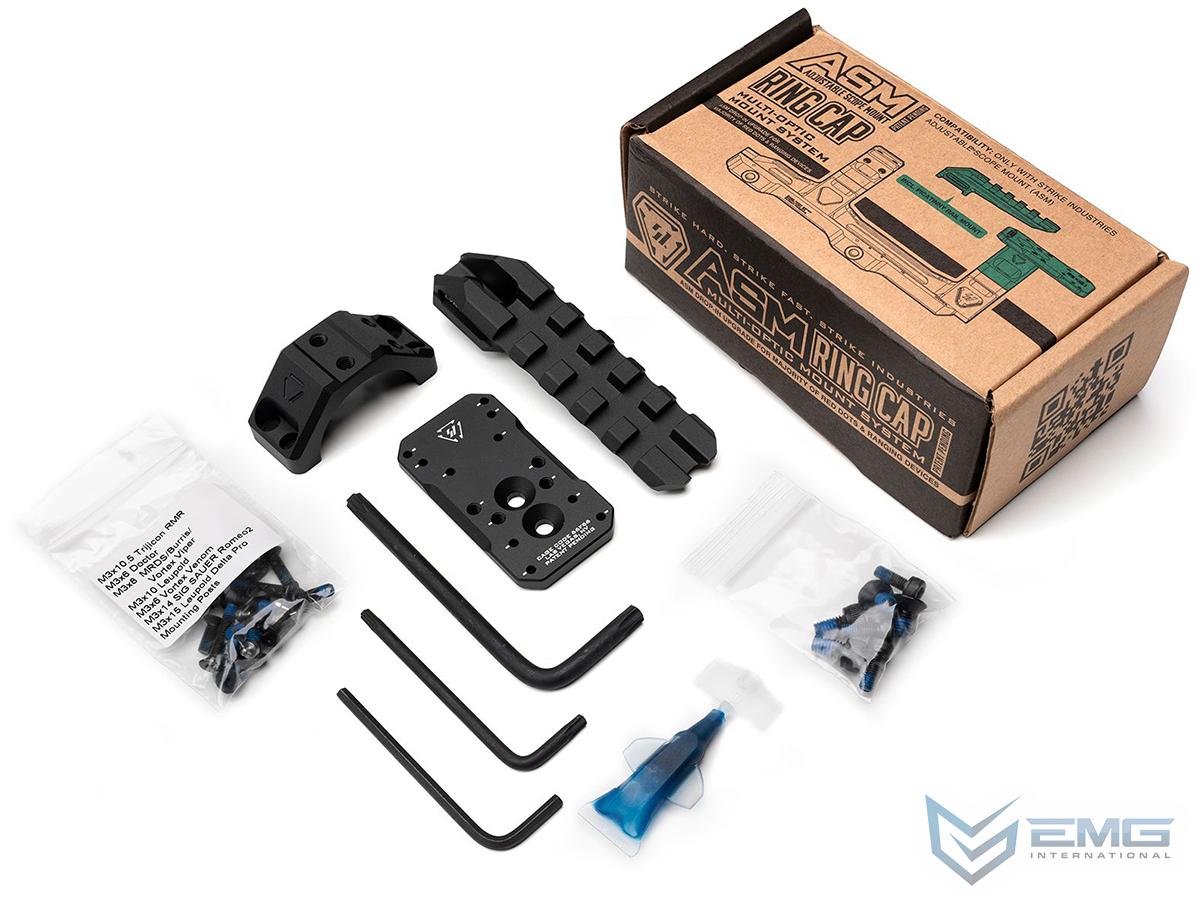

Package Includes: 1x Strike ASM Ring Cap Mount, 1x Strike Multi-Optic Sight Mount, 1x Picatinny rail mount, 4x Screw for ring cap to ASM mount [M3x8mm M2.5 Socket Cap], 2x Screw for optic plate to ASM ring cap [M4x8mm T25 Flat], 2x Screw for Picatinny rail [M4x7mm T25 Socket Cap], 2x Screw [M3x6mm T10 Flat], 2x Screw [M3x6mm T10 Rounded], 2x Screw [M3x8mm T10 Flat], 2x Screw [M3x8mm T10 Rounded], 2x Screw [M3x10mm T10 Flat], 2x Screw [M3x10.5mm T10 Flat], 2x Screw [M3x14mm T10 Flat], 2x Screw [M3x15mm T10 Flat], 3x Large mounting post, 5x Small mounting post, 1x Hex tool [2.5mm], 1x Torx tool [T10], 1x Torx tool [T25], 1x Loctite® Threadlocker Blue 243®, 1x Warning card

Torque: Do not exceed 15 in/lbs (1.69 nM) for the Strike ASM Ring Cap Mount screws
Warning: When using screws provided in the package, there is always a chance of hardware marring your optic housing finish/coating. Be careful and use your best judgment on which hardware to use for your specific setup. All installations should only be done by a certified professional gunsmith and properly tested to pass all safe and function tests
